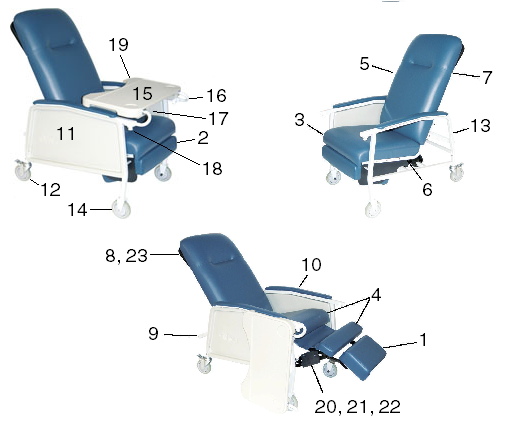

1

FOOTREST PAD BLUE RIDGE

FOOTREST PAD JADE

FOOTREST PAD ROSE

2

LEGREST PAD BLUE RIDGE

LEGREST PAD JADE

LEGREST PAD ROSE

3

SEAT BLUE RIDGE

SEAT JADE

SEAT ROSE

4

SEAT with LEGREST PAD BLUE RIDGE

SEAT with LEGREST PAD JADE

SEAT with LEGREST PAD ROSE

5

BACK BLUE RIDGE

BACK JADE

BACK ROSE

6

SEAT FRAME

7

HEADREST ADJUSTMENT

8

PUSH HANDLE

HARDWARE (Not Shown)

D574P-1058BR

D574P-1058J

D574P-1058R

D574P-1055BR

D574P-1055J

D574P-1055R

D574SEAT-BR

D574SEAT-J

D574SEAT-R

D574P-SEATLEG-BR

D574P-SEATLEG-J

D574P-SEATLEG-R

D574BACK-BR

D574BACK-J

D574BACK-R

D574P-1053

D574P-1048

D574P-1004

FOOTREST SUPPORT BAR & BOLTS

9

BACK LOCK BAR

10

ARMREST PAD BLUE RIDGE

ARMREST PAD JADE

ARMREST PAD ROSE

11

SIDE PANELS (PR)

12

LOCKING CASTER (PR)

13

RECLINER FRAME

14

FRONT CASTER

15

TRAY TABLE

16

TRAY SLIDE TUBE

17

TRAY TABLE SLIDE TUBE FITTING

18

TRAY RELEASE BUTTON

19

SCREW & WASHER TRAY TABLE

20

RECLINING MECHANISM (PR)

21

FOOREST SUPPORT BAR BOLT

22

PROTECTION PANELS

23

BACK RELEASE BUTTON

D574P-1050

D574P-1070BR

D574P-1070J

D574P-1070R

D574P-1020

D574P-1025B

D574P-1068

D574P-1027

D574P-1038

D574P-1064

D574P-1036

D574P-BTN

D574P-1037

D574P-1035

D577P-1011

D574P-1061

D577P-1012

D574-BBN

D574P-1003
