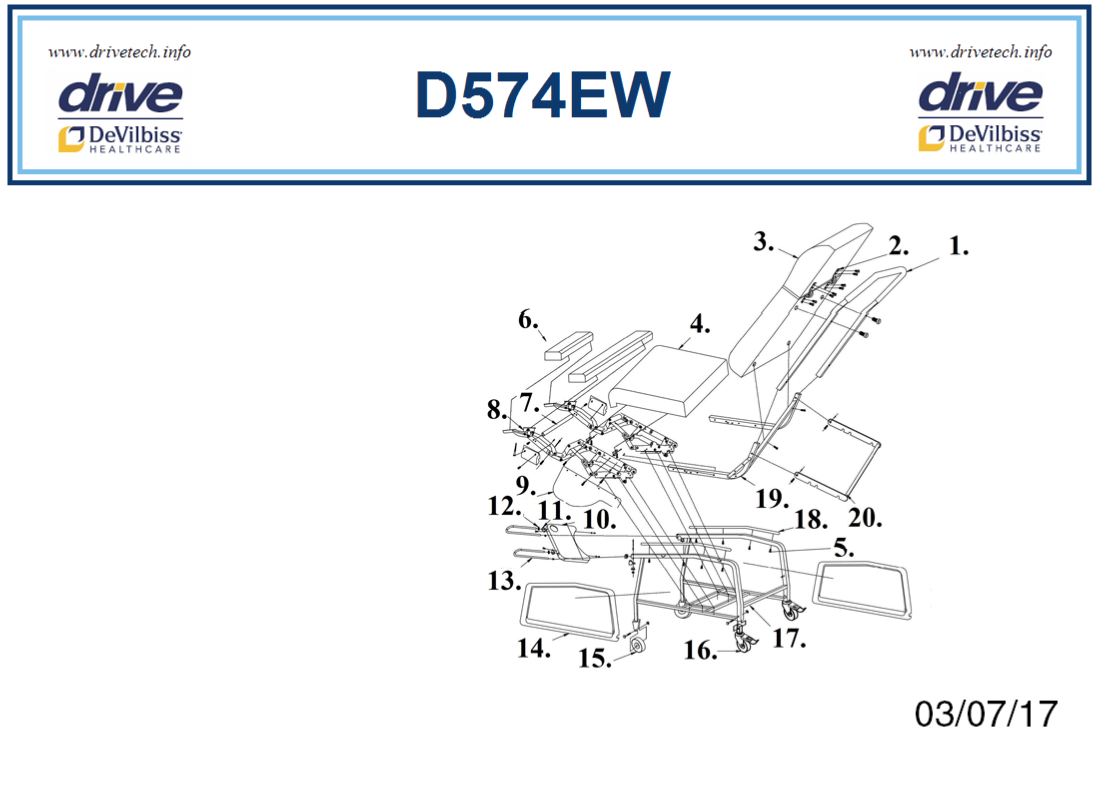

Diagrams Home

1. Lower Push Handle

2. Headrest Adj. Bracket Left

                                        Right

3. Back

    Blue Ridge

    Jade

    Rose

4. Seat w/ Legrest

    Blue Ridge

    Jade

    Rose

5. Hardware

6. Footrest

    Blue Ridge

    Jade

    Rose

7. Support Bar & Hdwr

    Hardware Only

8. Reclining Mechanism

9. Protective Panels

10. Tray

11. Table Washer

12. Table Fitting

13. Table Slide Tube

14. Slide Panels (pr)

15. Front Caster

16. Locking Caster (pr)

17. Frame

18. Armrest

     Blue Ridge

     Jade

     Rose

19. Seat Frame

20. Locking Bar




D574EW-1003

D574P-1048

D574P-1048-R


D574EWBACK-BR

D574EWBACK-J

D574EWBACK-R


D574EWSEAT-BR

D574EWSEAT-J

D574EWSEAT-R

D574EW-1004


D574EW-1010BR

D574EW-1010J

D574EW-1010R

D574EW-1011

D574P-1061

D574EW-1035

D577P-1012

D574EW-1065

D574P-1037

D574P-1036

D574P-1064

D574P-1020

D574P-1027

D574P-1025B

D574EW-1017N


D574EW-1070BR

D574EW-1070J

D574EW-1070R

D574EW-1013

D574EW-1050




Dimension Diagram
