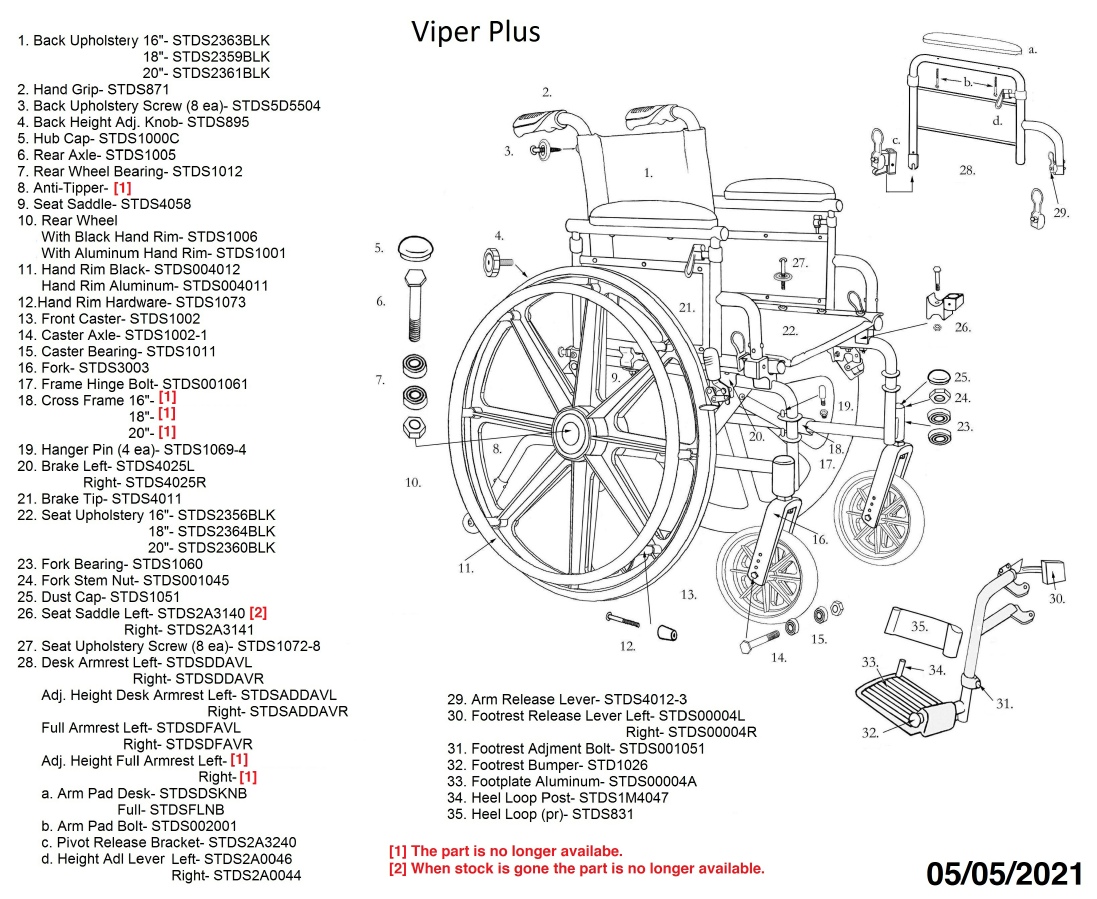

Viper plus

1. Back Upholstery 16”

                                 18”

                                  20”

2. Handgrip

3. Back Upholstery Screw

4. Back Height Adjustment Knob

5. Rear Wheel Hub Cap

6. Rear Axle Bolt

7. Rear Wheel Bearings

8. Anti-Tippers 1 Pair

9. Seat Saddle

10. Rear Wheel Black Hand Rail

                   Aluminum. Hand Rail

11. Hand Rail Back

                Aluminum

12. Hand Rail Screws and Spacers

13. Front Caster

14. Front Axle Bolt

15. Front Caster Bearings

16. Front Caster Fork

17. Frame Hinge Bolt

18. Cross Frame 16”

                              18”

                               20”

19. Hanger Pin (4)

20. Brake Right

                  Left

21. Rubber Brake Tip

22. Seat Upholstery 16”

                                   18”

                                    20”

23. Cross Frame Assist 16”

                                         18”

                                          20”



STDS2363BLK

STDS2359BLK

STDS2361BLK

STDS871

STDS5D5504

STDS895

STDS1050

STDS1005

STDS1012

STDS807N

STDS4058

STDS1006

STDS1001

STDS004012

STDS004011

STDS1073

STDS1002

STDS1002-1

STDS1011

STDS3003

STDS001061

STDS2A3116

STDS2A3118

STDS2A3120

STDS1069-4

STDS4025R

STDS4025L

STDS4011

STDS2356BLK

STDS2364BLK

STDS2360BLK

STDS1M4016

STDS1M4018

STDS1M4020




24. Fork Stem Bearings

25. Fork Stem Lock Nut

26. Fork Stem Bearing Cap

27. Seat Rail Bracket, Rt. Alum.

                                       Lt. Alum.

28. Seat Upholstery Screw

29. a. Arm Pad Desk

                           Full

      b. Adjust Arm Frame Desk Top

                                           Full Top

      c. Arm Pad Bolts

      d. Rear Arm Rest Bushing

      e. Arm Frame, Bottom

30. Arm Release Lever

      f. Pivot Release Bracket

      g. Adjustment Lever

      h. Front Arm Rest Bushing

31. Footrest Release Latch Left

                                                Right

32. Footrest Hanger Left

                                   Right

33. Footrest Adjustment Bolt

34. Footrest Bumper

35. Footplate Plastic (pr)

                        Aluminum (ea)

36. Heel Loop Post

37. Heel Loop (ea)

                          (pr)




STDS1060

STDS001045

STDS1051

STDS2A3141

STDS2A3140

STDS001072-8

STDSDSKNB

STDSFLNB

STDS2A0043

STDS2A0042

STDS002001

STDS000041

STDS2A3244

STDS4012-3

STDS2A3240

STDS2A0044

STDS000042

STDS00004L

STDS00004R

STDS00202L

STDS00202R

STDS001051

STDS1026

STDS3J0906

STDS00004A

STDS1M4047

STDS004048

STDS831



06/01/14
