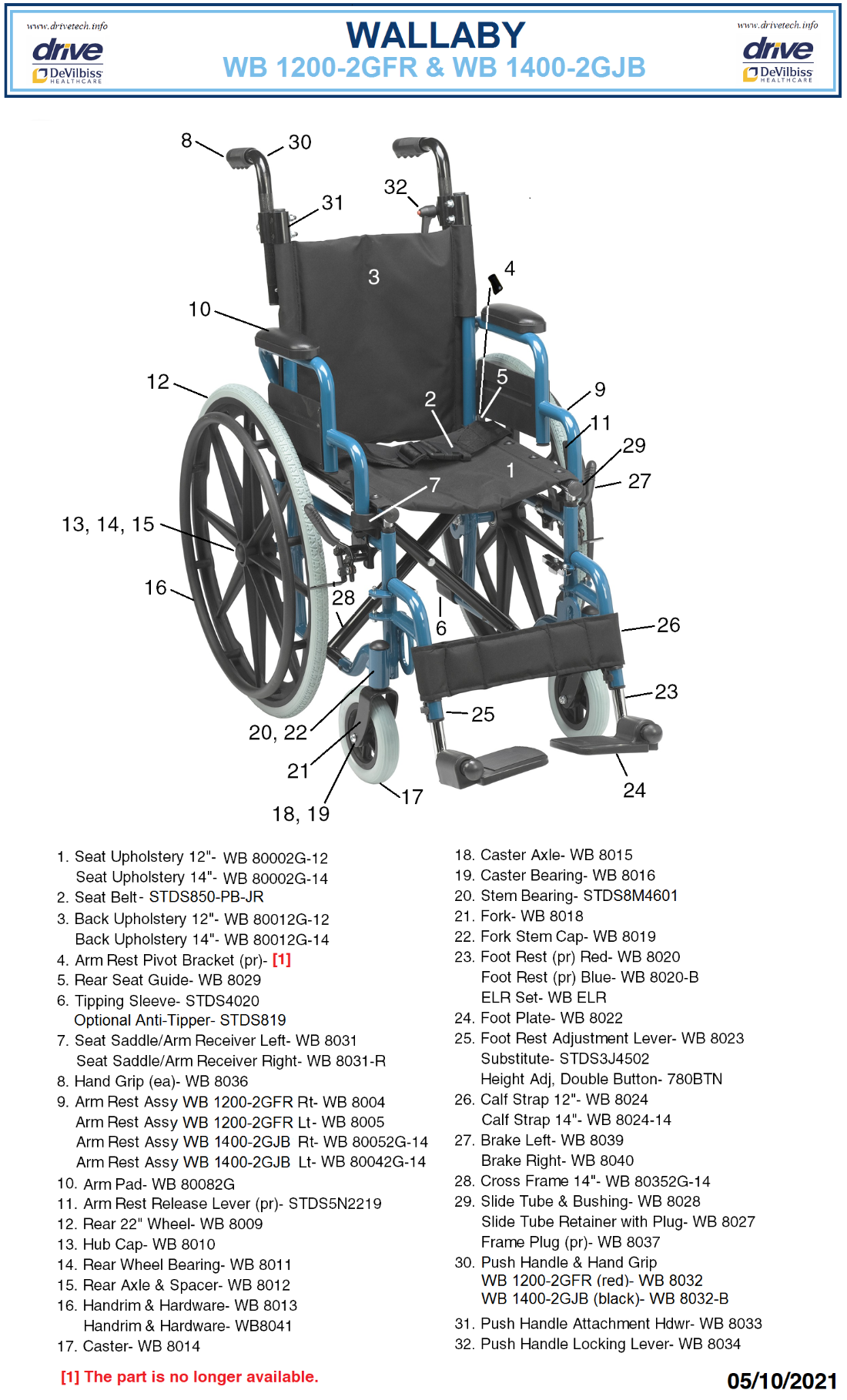

wallaby

1. Seat Upholstery 12”

                                 14”

2. Seat Belt

3. Back Upholstery 12”

                                  14”

4. Arm Rest Pivot Bracket (pr)

5. Rear Seat Guide

6. Tipping Sleeve

     Anti-Tipper (optional)

7. Seat Saddle/Arm Receiver Left

                                                  Right

8. Hand Grip (ea)

9.  Arm Rest Assy WB 1200-2GFR Rt

     Arm Rest Assy WB 1200-2GFR Lt

     Arm Rest Assy WB 1400-2GJB Rt

     Arm Rest Assy WB 1400-2GJB Lt

10. Arm Pad

11. Arm Rest Release Lever (pr)

12. Rear 22” Wheel

13. Hub Cap

14. Rear Wheel Bearing

15. Rear Axle & Spacer

16. Handrim & Hardware

      Handrim & Hardware

17. Caster


WB 80002G-12

WB 80002G-14

STDS850-PB-JR

WB 80012G-12

WB 80012G-14

STDS5N2237

WB 8029

STDS4020

STDS819

WB 8031

WB 8031-R

WB 8036

WB 80042G-14

WB 80052G-14



WB 80082G

STDS5N2219

WB 8009

WB 8010

WB 8011

WB 8012

WB 8013

WB 8041

WB 8014



18. Caster Axle

19. Caster Bearing

20. Stem Bearing

21. Folk

22. Fork Stem Cap

23. Foot Rest (pr) Red

                               Blue

       ELR Set

24. Foot Plate

25. Foot Rest Adjustment Lever

      Substitute

      Height Adj. Double Button

26. Calf Strap 12”

                        14”

27. Brake Left

                 Right

28. Cross Frame 14”

29. Slide Tube & Bushing

       Slide Tube Retainer with Plug

        Frame Plug (pr)

30. Push Handle & Hand Grip

       WB 1200-2GFR (red)

       WB 1400-2GJB (black)

31. Push Handle Attachment Hdwr

32. Push Handle Locking Lever


WB 8015

WB 8016

STDS58M4601

WB 8018

WB 8019

WB 8020

WB 8020-B

WB ELR

WB 8022

WB 8023

STDS3J4502

780BTN

WB 8024

WB 8024-14

WB 8039

WB 8040

WB 8035G-14

WB 8028

WB 8027

WB 8037


WB 8032-R

WB 8032-B

WB 8033

WB 8034



06/28/18 Dimension Diagram
