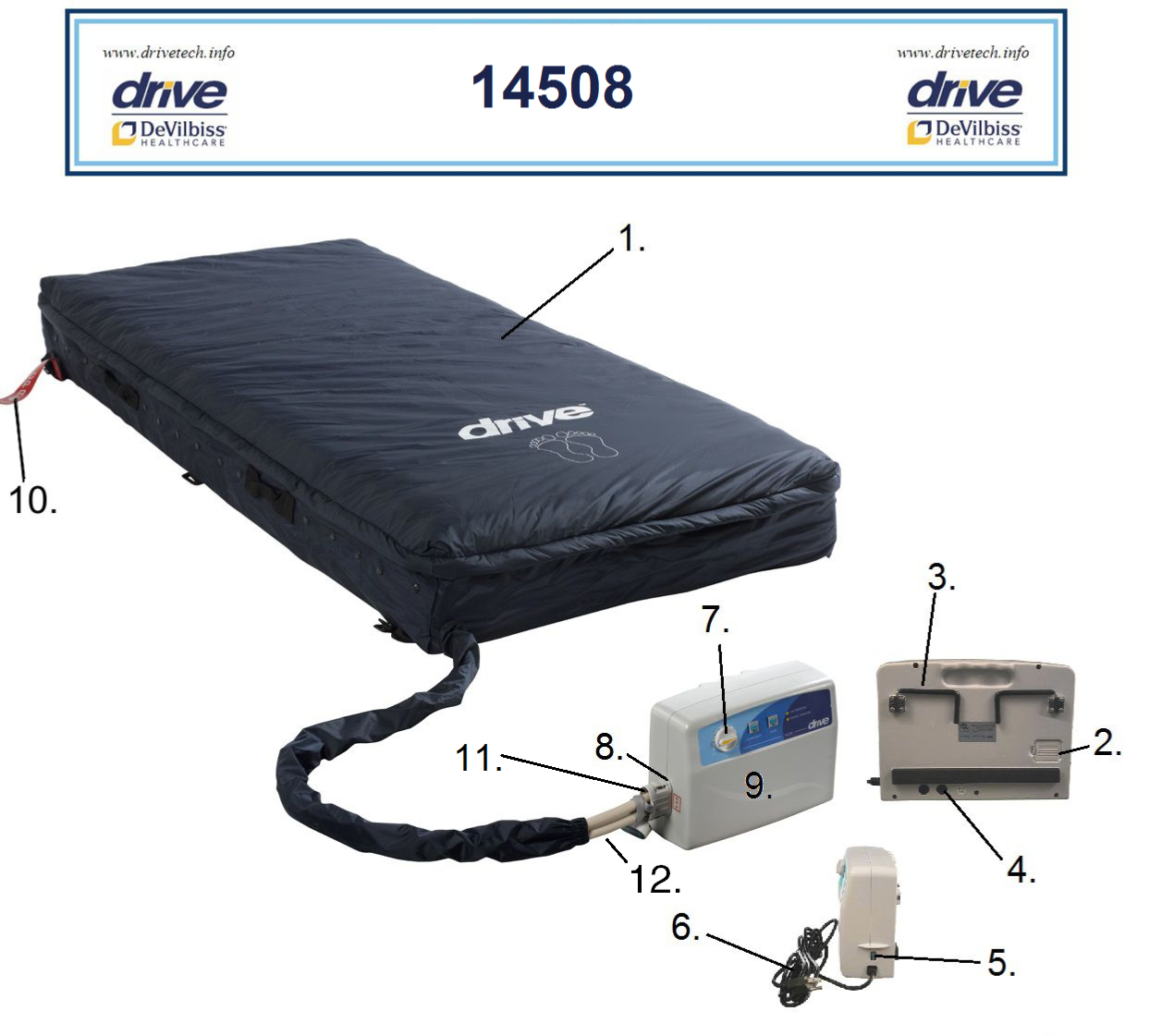

1. Mattress- 14508M

    Cover- 145080C

    Vented Bladder- 14508-CELL1

    Non-Vented Bladder- 14508-CELL

    Base- 14508B

2. Filter- 14530PF

    Filter Cover- 14530PC

3. Hanging Bracket (ea)- 14530H

4. Fuse (1A 250V)- 14530F

    Fuse Holder- 14530FH


5. Power Switch- 14530S

6. Power Cord- 14530PC

7. Adjustment Knob- 14530K

8. Pump Socket- 14530PS

9. Pump- 14508P

    Sub- 14530P

10. CPR Valve- 14012

11. Mattress Connector- 14530MC

12. Hose- 14028H


Not Shown:

One Way Valve- 14028V

7” Tubing- 14028T

T Connector- 14001T

L Connector- 14001L

09/26/17
