Trident hd

18. Motor Mount- - TRIDHD-09

19. Drive Tire Only- TRIDHD-27

20. Drive Wheel Complete- TRIDHD-06

      (includes mounting nut & washer)

21. Anti-Tipper Shock Absorber- TRID-2A19

22. Anti-Tipper Arm- TRID-2A18

23. Anti-Tipper Wheel- TRID-2A16

24. Anti-Tipper Axle- TRID-2A17

25. Footrest & Bolt- TRIDHD-21

26. Footrest Bracket & Knob- TRIDHD-22

27. Fender (Left or Right)- - TRIDHD-19

28. Main Frame- TRIDHD-10

29. Height Adjustment Pins (3 ea)- TRID-2A28

30. Upper Frame- TRIDHD-11

31. Seat Latch- TRIDHD-20

32. Rear Battery Cover- TRIDHD-25

33. Battery Case

      VR2 Pair- TRIDHD-15

              1 Plug- TRIDHD-15-1

              2 Plug- - TRIDHD-15-2

       Linx Pair- TRIDHD-53-LINX

               1 Plug- TRIDHD-15-1

               2 Plug- TRIDHD-15-2-LINX

34. Battery Tray- TRIDHD-13

35. Battery Tray Slides- TRIDHD-12

36. Battery Tray Release Pin- TRIDHD-14

37. Battery Tray Hold Down Bolt- TRIDHD-16

38. Battery (2 needed)- LRB402308

39. Controller VR2- TRIDHD-28

                       Linx- TRIDHD-28-LINX

      Battery to Controller Cable- TRIDHD-31

40. Charger- CPC

   When Stock is gone use LRA402210.


ELR Adapter kit

Seat Plate Bracket- TRID-2A47

ELR Bracket- SFELR

ELR- LK3JELR




1. Headrest- TRIDHD-26

2. 22” Seat- TRIDHD-07

    24” Seat- TRIDHD-08

    22” Pan Seat Assembly- TRIDHD-33

    24” Pan Seat Assembly- TRIDHD-34

3. Armrest Assembly   Left- TRIDHD-30

                                      Right- TRIDHD-29 ***

     *** (w/o Joystick Bracket)





     Armrest Assembly Left- TRIDHD-30N ****

                                     Right- TRIDHD-29N ****





4. Arm Pad- TRID-2A05

    Arm Pad Screws (pr)- TRID-2A51

    Arm Pad- TRID-2A05N ****

    Arm Pad Screws (pr)- TRID-2A51N ****

5. Armrest Height Knob- TRID-2A43

6. Joystick Mount- TRID-2A38



7. Joystick Arm VR2- TRID-2A36

                          Linx- TRID-2A36-LINX*

8. Joystick VR2- S350169701

                  Linx- LINX-JOYSTICK*

     Joystick Tip Linx- DC GPL55470

    Extension Cable- GLM-BUS150-A**

9. Armrest Width Knob- TRID-2A44

10. Dust Cap- TRIDHD-04

11. Fork Stem Bearing- STDS2050

12. Fork- TRIDHD-01

13. Caster Tire Only- TRIDHD-24

14. Caster Complete- TRIDHD-02

       Bearings (pr)- TRIDHD-32

15. Caster Axle- TRIDHD-03

16. Motor Shock Absorber- TRIDHD-23

17. Motor/Gearbox Assembly

                               VR2 Left- TRIDHD-17

                               VR2 Right- TRIDHD-18

                                Linx Left- TRIDHD-17-DY*

                                Linx Right- TRIDHD-18-DY*

      Motor Brush (ea) VR2 & Linx- SF5012

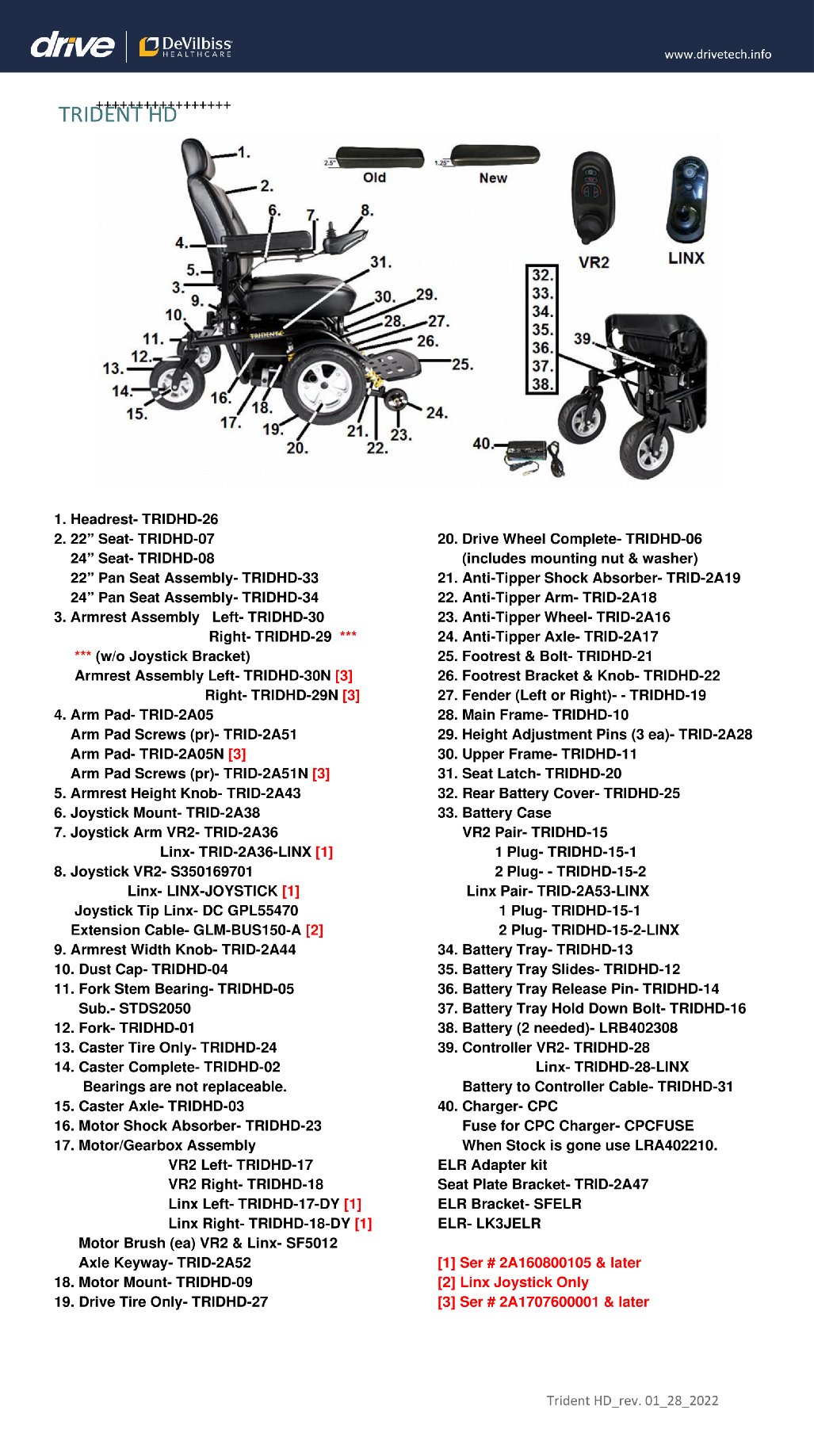

05/23/18 Dimension Diagram

*  Ser # 2A160800105 & later

**  Linx Joystick Only

****  Ser # 2A1707600001 & later
